Electronic Load

Explore our range of electronic load products by OWON by clicking on any image below to view the full selection within each category.

For detailed pricing and order inquiries, please don't hesitate to contact us directly at sales@anv-technologies.com. Our team is ready to assist with all your needs.

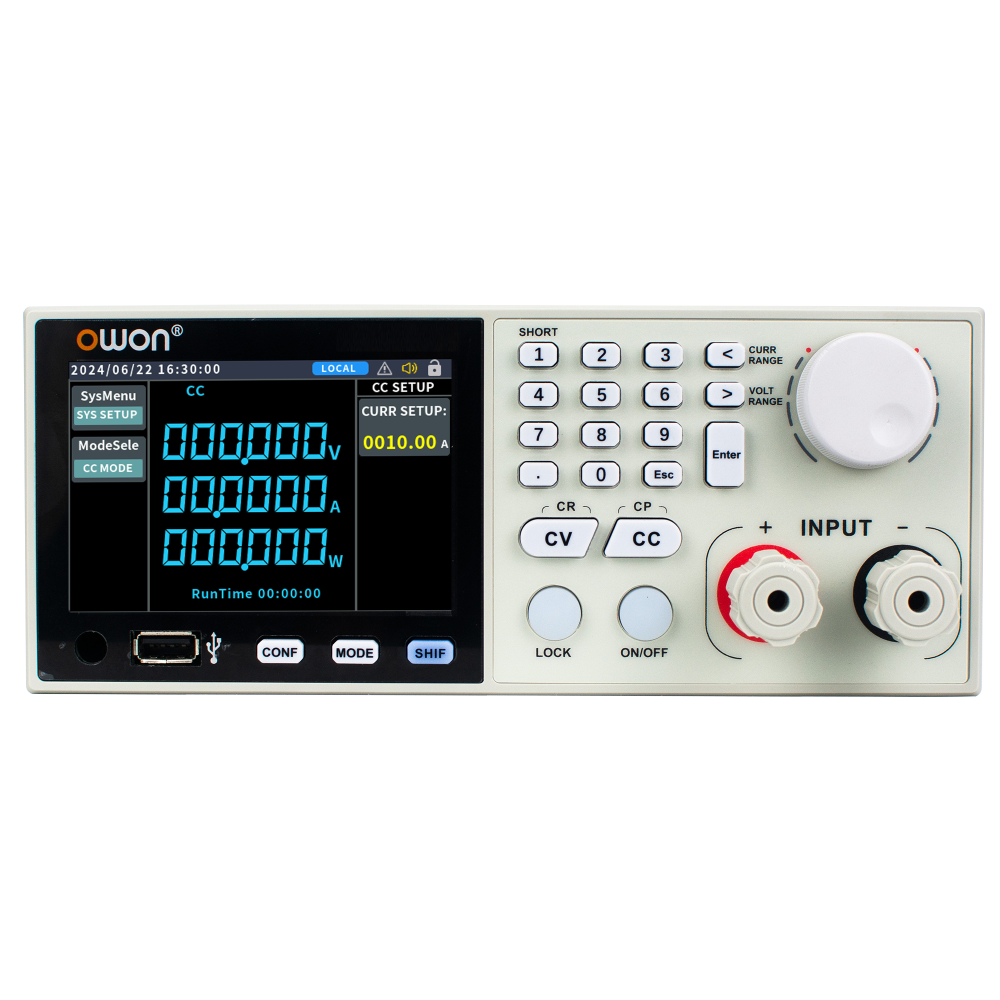

OEL8500 Series DC Electronics Load

  • Dynamic mode: up to 5kHz

  • Readback resolution: 1 mV/0.1 mA

  • Overvoltage/Overcurrent/Overpower/Overtemperature/Reverse Voltage protection

  • 4 static modes: CC, CV,CR,CP

  • Supports CC dynamic mode and short-circuit simulation

  • Adjustable current rise time range: 0.001A/μs~2A/μs

  • Supports multi-unit parallel operation (except CV mode), Communicates via RS485, and can be expanded to 10 units for a total of 4kW

  • Built-in RS232 and USB Device interfaces, supporting SCPI protocol and host computer communication

  • 1/2 2U standard rack mount size

  • 3.9-inch TFT LCD display
